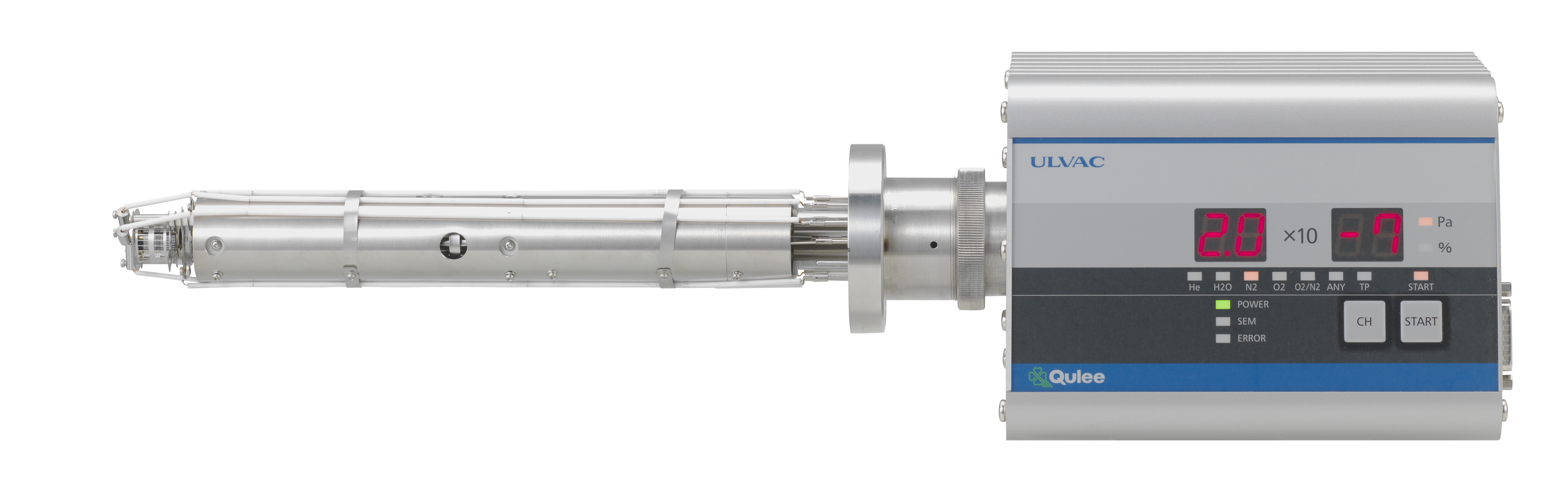

High Performance Process Gas Monitor – Qulee HGM2 Series
ULVAC’s new “Qulee HGM2” residual gas analyzer series with revolutionary simplicity of use. Offers highest sensitivity of all models at 2.5×10-6 A/Pa, Qulee HGM can meet the needs of various R&D and other vacuum system process monitoring.
- Most Appropriate for R&D Applications
Offers highest sensitivity 2.5×10-6A/Pa (3.3×10-4A/Torr, 2.5×10-4A/
mbar) - Integrated Display
No need for PC - Simple Operation
„One Click“ function - Bake Out
Max 250˚C (482˚F) high temperature bake (300˚C (572˚F) when the
sensors are removed) - Degas Function
Electron bombard degas - Maintenance
Filament, ion source, and secondary electron multiplier are easy to
replace. - Protection and Maintenance Features
Unit offers protection and maintenance of ion source and secondary
electron multiplier
Traceability of analysis tube (patent pending) - Various Leak Tests are available
Helium leak test, air leak test, leak up - Total Pressure Measurement
Capable of total pressure measurement (ionization gauge) - Qulee QCS is Included
This software is included and compatible with (Windows XP/7) - Applicable Standard
Conforms with CE
Special Features / Further Applications
- R&D such as thermal desorption gas analysis
- Residual gas analysis for ultra-high vacuum pumping equipment, etc
- Trace impurities in gas
- R&D for photovoltaic ield
- Analysis of organic compound
- Environmental measurements
